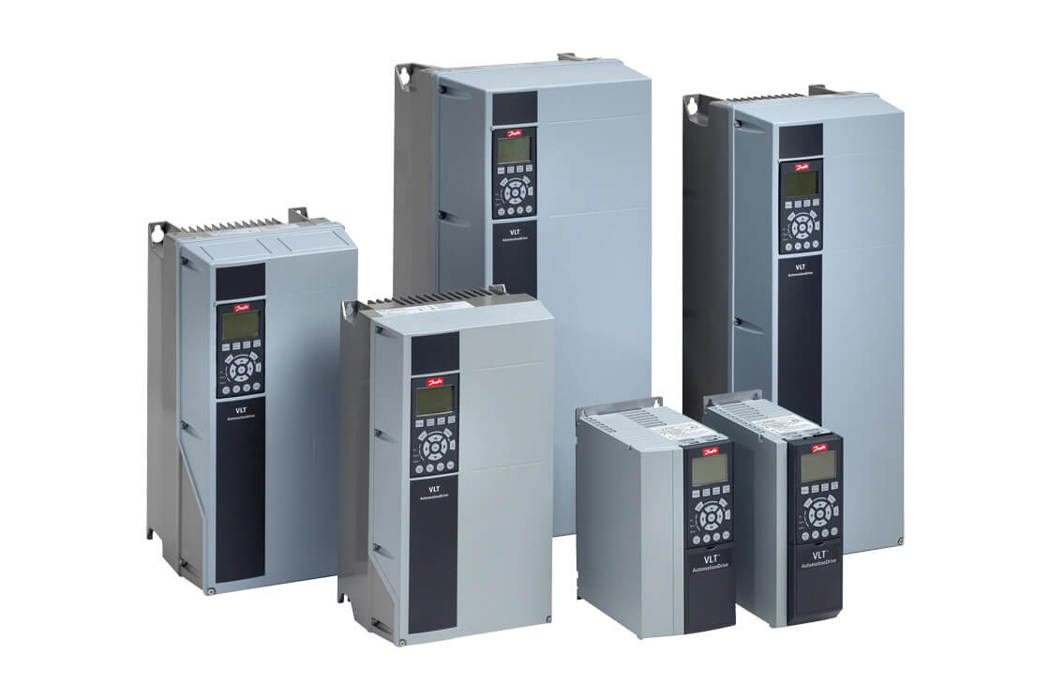

VLT® AutomationDrive FC 301 and FC 302
Control of all motor-driven applications
Power range
3 x 200-240 V……………………..0.25-37 kW
3 x 380-500 V…………………..0.37-1100 kW
3 x 525-600 V……………………..0.75-75 kW
3 x 525-690 V……………………1.1–1400 kW
Power range – Low harmonic drive
3 x 380-480 V……………………..132-710 kW
Power range – 12-pulse drive
3 x 380-500 V……………………250-1000 kW
3 x 525-690 V……………………250-1400 kW
Protection ratings
IP00
IP20
IP21/Type 1
IP54/Type 12
IP55/Type 12
IP66/Type 4X
Improved connectivity
Easier to install, commission, and service
More space for cabling
Easier access to terminals
Fewer parts
High power density
Highly compact
Highest possible power output for the physical dimensions of the drive.
Achieved by maximum use of silicon capacity, using cutting-edge technology in thermal management.
Back-channel cooling
Unique ducted back-channel passes cooling air over heat sinks
90% of heat losses are exhausted directly outside of the enclosure
Dramatically reduces temperature rise
Reduces contamination of the electronic components.
Built-in options
Fuses
Disconnect and fuses
Main shield
Brake terminals
Loadd share terminals
RFI filter
Space heater
USB through door
Heat sink access panel
Corrosion-resistant back
| Feature | Benefit |
|---|---|
| Reliable | Maximum uptime |
| Ambient temperature 50° C without derating | Reduced need for cooling or over-dimensioning |
| Available in IP00, IP20, IP21, IP54, IP55 and IP66 enclosures | Enclosures for all environments |
| Resistant to wear and tear | Low lifetime cost |
| Back-channel cooling for D, E and F enclosure sizes | Prolonged lifetime of electronics 85-90% of heat losses are exhausted directly outside of the enclosure |
| Mains disconnect switch | No need for external switch |
| User-friendly | Saves commissioning and operating cost |
| Plug-and-play technology | Easy upgrade and changeover |
| Award-winning control panel | User-friendly |
| Intuitive VLT® interface | Saves time |
| Pluggable cage clamp connectors | Easy connection |
| Exchangeable languages | User-friendly |
| VLT® drive software customizer | Adapt parameter names and splash screen |
| Operates in range -25oC to +50oC with no extra enclosure | Lower installation cost |
| Remote LCP mounting kit | Save time in installation & startup |
| Wireless LCP for remote access from any device | Faster, easier startup and operation |
| Web server – customizable | Remote monitoring |
| General features | |
| Preventive maintenance scheduling | Optimizes planned system maintenance |
| Data logging extension | Ensures logging and readout of the drive running history, which are vital data in the event of a trip |
| Intelligent | |
| Intelligent warning systems | Warning before controlled stop |
| Smart Logic Control | Reduces need for PLC capacity |
| Advanced plug-in features | Easy commissioning |
| Extended safety functions which deliver full safety monitoring whilst enabling the machine to remain active | Shorter downtimes Higher productivity |
| STO: Safe Torque Off (IEC 61800-5-2) | SIL 2 (IEC 61508) SIL CL 2 (IEC 62061) PL d (ISO 13849-1) |
| Intelligent heat management | Reduced heat load saves on cooling costs and switchroom size |
| Energy saving | |
| Automatic Energy Optimization (AEO) | Saves 5-10% energy |
| VLT® drive 98% efficiency | Saves energy |
| PM, IPM and PMaSynRM support | High efficiency due to motor adaptability |
