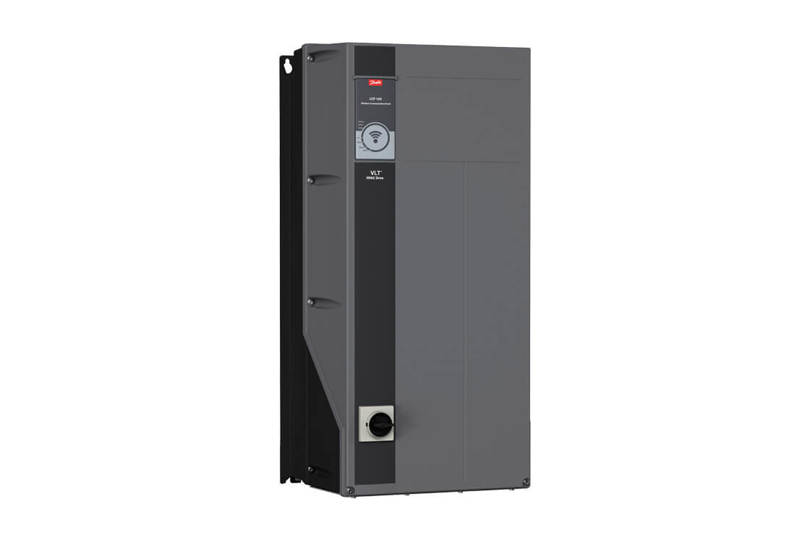

VLT® HVAC Drive FC 102
Leading drive for heating, ventilation and air-conditioning systems
Power range
3 x 200-240 V …………………….. 1.1-45 kW
3 x 380-480 V ………………….. 1.1-1000 kW
3 x 525-600 V ………………………1.1-90 kW
3 x 525-690 V ………………….. 1.1-1400 kW
Power range – Low harmonic drive
3 x 380-480 V……………………..110-710 kW
Power range – 12-pulse drive
3 x 380-480 V……………………315-1000 kW
3 x 525-690 V……………………450-1400 kW
Protection ratings
IP00
IP20
IP21/Type 1
IP54/Type 12
IP55/Type12
IP66/Type 4X
Description
| Feature | Benefit |
|---|---|
| All built-in – low investment | |
| Modular product concept with a wide range of options | Low initial investment – maximum flexibility, later upgrade possible |
| Dedicated HVAC I/O functionality for temperature sensors etc. | External conversion saved |
| Decentral I/O control via serial communication | Reduced wiring costs, and external controller I/O saved |
| Wide range of HVAC protocols for BMS controller connectivity | Less extra gateway solutions needed |
| 4 x auto-tuned PIDs | No external PID controller needed |
| Smart Logic Controller | Often makes PLC unnecessary |
| Real Time Clock | Enables daily and weekly settings |
| Integrated fan, pump and compressor functionality | Saves external control and conversion equipment |
| Fire Mode, Dry run Detection, Constant Torque etc. | Protects equipment and saves energy |
| Back-channel cooling for D, E and F enclosures | Prolonged lifetime of electronics |
| Save energy – less operation cost | |
| Automatic Energy Optimizer function, advanced version | Saves 5 – 10% energy |
| Advanced energy monitoring | Overview on energy consumption |
| Energy saving functions such as flow compensation, sleep mode | Saves energy |
| PM, IPM and PMaSynRM support | High efficiency due to motor adaptability |
| Unequalled robustness – maximum uptime | |
| Robust single enclosure | Maintenance-free |
| Unique cooling concept with no ambient air flow over electronics | Problem-free operation in harsh environments |
| Max ambient temp. 50° C without derating (D-enclosure 45° C) | No external cooling or over-dimensioning necessary |
| User-friendly – save commissioning and operating cost | |
| VLT® drive software customizer | Adapt parameter names and splash screen |
| Operates in range -25oC to +50oC with no extra enclosure | Lower installation cost |
| Remote LCP mounting kit | Save time in installation & startup |
| Wireless LCP for remote access from any device | Faster, easier startup and operation |
| Web server – customizable | Remote monitoring |
| One drive type for the full power range | Less learning required |
| Smart Start | Quick and precise start-up |
| Award-winning graphical display, 27 languages | Effective commissioning and operation |
| USB plug and play connection | Easy to use PC software tools |
| Global HVAC support organisation | Local service – globally |
| Built-in DC coils and RFI filters – no EMC concerns | |
| Integrated DC link harmonic filters | Small power cables. Meets EN 61000-3-12 |
| Integrated EMC filters | Meets EN 55011 Class B, A1 or A2 |
