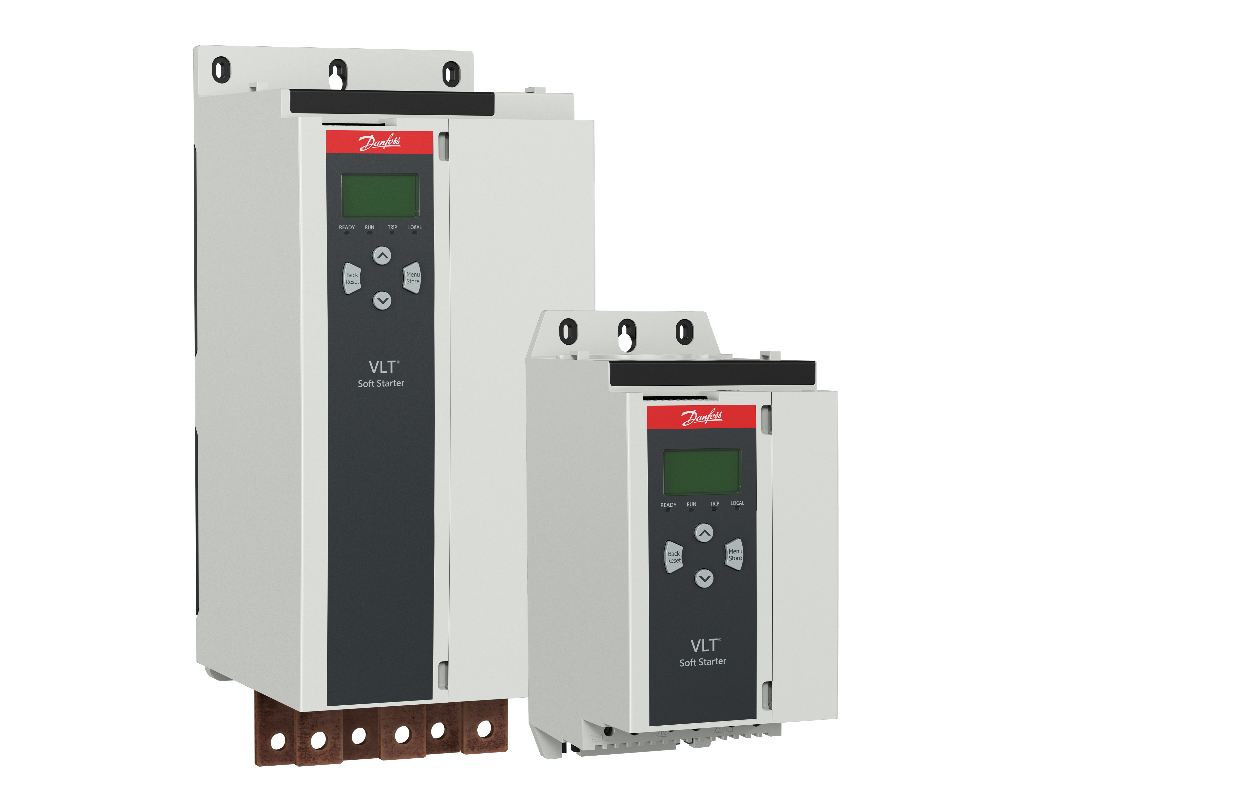

VLT® Soft Starter MCD 600
A total motor-starting solution
Technical data
Input ………………………………… 3 x 200-690 V (2 ranges)
Control voltage ………. 24 V DC or 110-240 V AC
Current range ……….. 20 – 579A (Size S1-S2)
Power …………………. 7.5-650/980kW* (870A)
*”inside delta connection”
Protection ratings
IP20: Size S1
IP00: Size S2
Description
| Feature | Benefit |
|---|---|
| Quick set-up menu | Adjusts key parameters to suit the application, reducing start-up time |
| Log menu – up to 348 individual events recorded | Eases analysis of the application |
| Pump clean functionality | Helps to dislodge debris from an impeller without any extra components |
| Integrated USB port (Parameter copy, data logging, firmware updates) | Reduced startup and upgrade time Easy access to operational data |
| AAC Adaptive Acceleration Control | Automatically adapts to the chosen starting and stopping profile |
| Reversing contactor control | Allows for soft starting in any direction Does not require any external contactors |
| Jog (slow-speed operation) | Application flexibility |
| Auto Reset | Less downtime |
| Internal bypass contactors | Save space and wiring Reduced heat dissipation when running Eliminates costly external components |
| Inside Delta (6-wire connection) | Smaller soft starter can be selected |
| PowerThrough operation | Utilizes 2-phase control when one phase is damaged (shorted SCR) |
| Expanded motor and controller protections (Over/Under-power, Over/Under-voltage) | Additional protection reduces downtime |
| Multiple languages | Eases commissioning, reducing start-up time |
| On-screen, dynamic QR-codes | Provides information about the MCD 600, including serial number and failure information |
