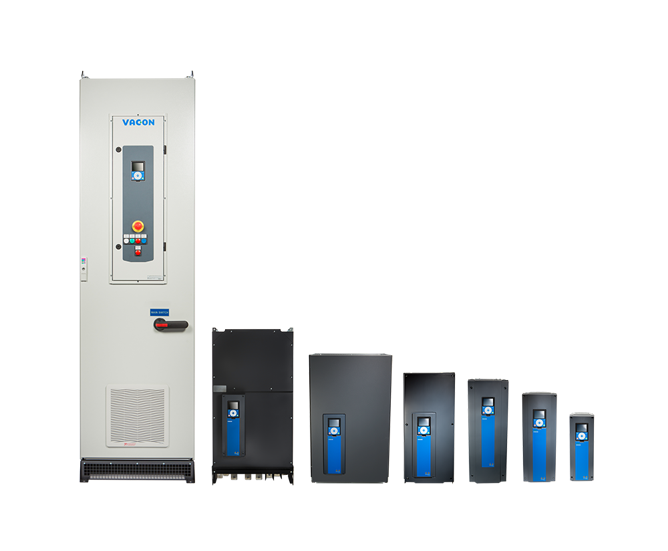

VACON® 100 INDUSTRIAL
The versatile drive that is ideal for hundreds of applications.
Power range
3 x 208-240 V …………………. 0.55 – 90 kW
3 x 380-500 V …………………. 1.1 – 630 kW
3 x 525-690 V …………………… 5.5-800 kW
Protection ratings
IP00
IP21/Type 1*
IP54/Type 12*
*dependent upon enclosure size
Description
| Feature | Benefit |
|---|---|
| Reliable | Maximum uptime |
| Available in IP00, IP21, IP54 enclosures | Enclosures for all environments both as wall mounted and cabinets |
| Electrolytic free long life DC-link capacitors | Maximum life time, environmental friedly, long time drive storage |
| Optimized control of cooling fans | Long life time of cooling fan, minimized noise |
| User-friendly | Saves commissioning and operating cost |
| Easy to use graphical keypad with icons and start-up wizard | Intutiave and easy to get going |
| Multi-monitoring of up to 9 signals and graphical trend view | Keep a good overview of the running system |
| Pluggable I/O terminals | Fast connection of signals |
| Mechanically protected power terminals for maximum safety | I/O cables separated from power cables for safety |
| Same size of IP21 and IP54 drives | System planning easy |
| Feature | Benefit |
| Intelligent & Easy to connect | |
| Motor switch ride through | Ensure correct drive behavior if motor switch opened or closed |
| Supports induction motors, PM motors and SynRM motors | Select the most efficient motor for the need |
| Standard and advanced functionalty (load drooping, mech brake control) | Extra value provided for most applications |
| Vacon Drive Customizer integrated | Easy way to build your own control logic – ideal for retrofit |
| Built-in PLC functionality | Enables custom made software functionality |
| Safe Torque Off (STO) SIL3, Safe Stop 1 (SS1) SIL2 | Safe and compliant machine operation |
| ATEX certified thermistor input | No need for external ATEX approved thermistor relay |
| All Integrated | |
| On-board Ethernet interface as standard – multiple protocols | No extra parts needed to connect |
| On-board RS485 interface as standard – multiple protocols | No extra parts needed to connect |
| Integrated real-time clock with calendar functionality | Time stamping of fault codes, calendard based control |
| EMC filters for C2 class built-in (wall mounted sizes) | No extra components need for connection to public networks |
| Integrated harmonic filtering for IEC/EN 61800-3-12 | Connection to public networks without extra parts needed |
