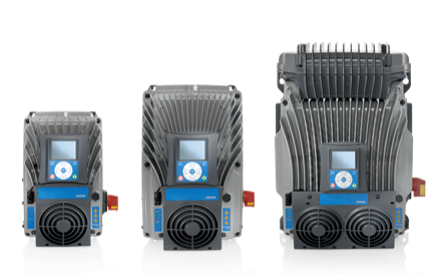

VACON® 100 X
The tough drive that can withstand high pressure cleaning, heat, dirt and vibration
Power range
3 x 208-240 V ……………………. 1.1-15 kW
3 x 380-500 V…………………….. 1.1-37 kW
Protection rating
IP66/Type 4X
Description
| Feature | Benefit |
|---|---|
| Reliable | Maximum uptime |
| Sealed IP66 enclosure for indoor and outdoor use | Field installation for all applications |
| Extreme 3g vibration spec | Mounting on any machine or directly on the motor |
| Optimized control of cooling fans | Long life time of cooling fan, minimized noise |
| Open fins that are easy to access | Easy to keep clean |
| User-friendly | Saves commissioning and operating cost |
| Mounting by fixing bottom plate and cabling first | Mounting part easy and light to install |
| Keypad with magnetic fixing | Can be rotated in any direction |
| Easy to use graphical keypad with icons and start-up wizard | Intuitive and easy to get going |
| Multi-monitoring of up to 9 signals and graphical trend view | Provides a good overview of the running system |
| Pluggable I/O terminals | Fast connection of signals |
| Feature | Benefit |
| Intelligent and easy to connect | |
| Motor switch ride through | Ensures correct drive behavior if motor switch opened or closed |
| Supports induction motors, PM motors and SynRM motors | Select the most efficient motor for the need |
| Standard and advanced functionality (load drooping, mechanical brake control) | Extra value provided for most applications |
| Vacon Drive Customizer integrated | Easy way to build your own control logic – ideal for retrofit |
| Built-in PLC functionality | Enables custom-made software functionality |
| Safe Torque Off (STO) integrated | Safe and compliant machine operation |
| All integrated | |
| Built-in Ethernet interface as standard – multiple protocols | No extra parts needed to connect |
| Built-in RS485 interface as standard – multiple protocols | No extra parts needed to connect |
| Integrated real-time clock with calendar functionality | Time stamping of fault codes, calendar-based control |
| Built-in EMC filters for C2 class | No extra components needed for connection to public networks |
| Integrated harmonic filtering for IEC/EN 61800-3-12 | Connection to public networks without extra parts needed |
