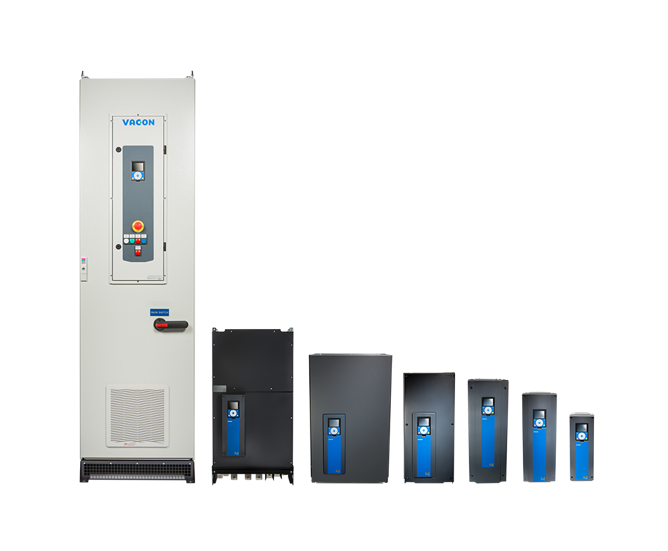

VACON® 100 FLOW
Dedicated functionality to improve flow control in pump and fan applications.
Power range
3 x 208-240 V ………………….. 0.55 – 90 kW
3 x 380-500 V ………………….. 1.1 – 630 kW
3 x 525-690 V …………………… 5.5-800 kW
Protection ratings
IP00
IP21/Type 1*
IP54/Type 12*
*dependent upon enclosure size
Description
| Feature | Benefit |
|---|---|
| Reliable | Maximum uptime |
| Available in IP00, IP21, IP54 enclosures | Enclosures for all environments both as wall mounted and cabinets |
| Electrolytic free long life DC-link capacitors | Maximum life time, environmental friedly, long time drive storage |
| Optimized control of cooling fans | Long life time of cooling fan, minimized noise |
| User-friendly | Saves commissioning and operating cost |
| Easy to use graphical keypad with icons and start-up wizard | Intutiave and easy to get going |
| Multi-monitoring of up to 9 signals and graphical trend view | Keep a good overview of the running system |
| Pluggable I/O terminals | Fast connection of signals |
| Mechanically protected power terminals for maximum safety | I/O cables separated from power cables for safety |
| Same size of IP21 and IP54 drives | System planning easy |
| Intelligent & Easy to connect | |
| Motor switch ride through | Ensure correct drive behavior if motor switch opened or closed |
| Vacon Drive Customizer integrated | Easy way to build your own control logic – ideal for retrofit |
| Safe Torque Off (STO) SIL3, Safe Stop 1 (SS1) SIL2 | Safe machine operation |
| ATEX certified thermistor input | No need for external ATEX approved thermistor relay |
| Supports induction motors, PM motors and SynRM motors | Select the most efficient motor for the need |
| All Integrated | |
| On-board Ethernet interface as standard – multiple protocols | No extra parts needed to connect |
| On-board RS485 interface as standard – multiple protocols | No extra parts needed to connect |
| Integrated real-time clock with calendar functionality | Time stamping of fault codes, calendard based control |
| EMC filters for C2 class built-in (wall mounted sizes) | No extra components need for connection to public networks |
| Integrated harmonic filtering for IEC/EN 61800-3-12 | Connection to public networks without extra parts needed |
| Dedicated Functionality | |
| Multi-pump cascade control built-in | Controls systems of up to 8 pumps |
| Multi-pump control: Multi-follower / Muilti-master | Control systems with up to 8 VSD pumps – drive to drive with RS485 |
| Multi-pump: Anti-blocking system | Ensure regular running of pumps to avoid blocking |
| Multi-pump: Diagnostics | Monitor usage period and number of start for each pump |
| Multi-pump: Overpressure protection | Fast disconnection of pumps if too high line pressure |
| Multi-pump: Real time clock based alternation | Alternation of pumps at low capactity days and times |
| 2 x PID controller | Extra controller can be used to control external systems |
| Frost protection for pump | Temperature sensitive sleep mode to avoid frost damage to pumps |
| Pressure loss compensation | Compensate for pressure loss in piping when sensor close to pump |
| Sleep mode | Stops pump if low demand |
| No demand detection | Ensure that pump does not run at high speeds with low demand |
| Soft filling of pipe | Runs pump at fixed speed until pressure sensor indicate pipe is full |
| Auto-cleaning / Auto-ragging | Detects when pump toruqe is suddenly increasing and runs a user-defined cleaning sequence |
