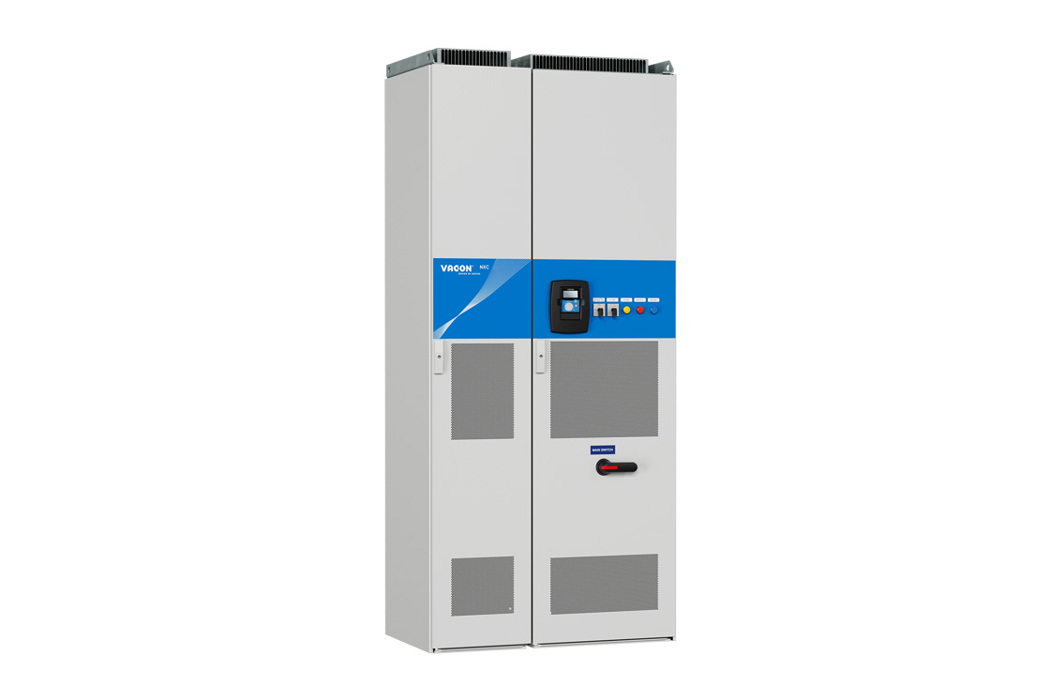

VACON® NXC Air Cooled Enclosed Drive
Save space and get the flexibility you need for your application
Power range
3 x 380-500 V ……………….. 132 – 1200 kW
3 x 525-690 V ……………….. 110 – 2000 kW
Power range – AFE supply
500 V ……………………………. 132-1500 kW
690 V ……………………………. 110-2000 kW
Power range – Low harmonic, Active Filter supplies
400 V …………………………….. 132-560 kW
500 V*…………………………….. 132-560 kW
690 V ……………………………… 110-800 kW
*requires 690 V active filter
Protection ratings
IP21/Type 1
IP54/Type 12
Description
| Feature | Benefit |
|---|---|
| Reliable & Service friendly | Maximum uptime |
| Available in IP21, IP54 enclosures | Enclosures for all environments |
| Pre-tested cabinet designs | Reliable operation and clear specifications |
| Based on well proven Rittal TS8 enclosures | Robust welded frame and wide range of options available |
| EMC approved (EN61800-3, 2nd environment) | Pre-tested soltion meeting valid requirements |
| Service concept with pullout jig | Drive module can be pulled out for service or fast replacement |
| Easy and Safe | Saves installation cost |
| Compact cabinet designs | Minimized space need |
| Separate control compartment | Control unit and control terminal blocks in separate compartment for maxium safety |
| Wide range of pre-designed options | Customer specific needs can be met efficiently with standard product |
| Internally touch protected | Cabinet inside protected against accidential touch |
| Cabinet documentation generated with Vacon Document Wizard | Full documentation can be delivered with quotation |
| 6-pulse and 12-pulse solutions available | Configure the drive according to preferred system topology |
| Feature | Benefit |
| Vacon NXP control flexibility Best control solutions | |
| High performance control and flexibility in one control unit | Same interfaces and functionality in all Vacon NXP based products |
| Removable keypad with parameter backup and copy function | Latest parameters always in keypad, copy for fast cloning of drives |
| All I/O modular – 5 interface card slots | I/O and fieldbus interface can be configured for any need |
| Built-in PLC functionality | Enables custom made software functionality |
| Open and Closed Loop motor control | Maximum motor control performance |
| Fast drive-to-drive communicaton and Drive-synch functionality | For load sharing and paralleling of power units |
| Separate automation control bus and separate monitor bus for PC tool | PC software available for drive configuration and monitoring |
| Safe Torque Off (STO), Safe Stop 1 (SS1) | Safe and compliant machine operation |
| ATEX certified thermistor input | No need for external ATEX approved thermistor relay |
