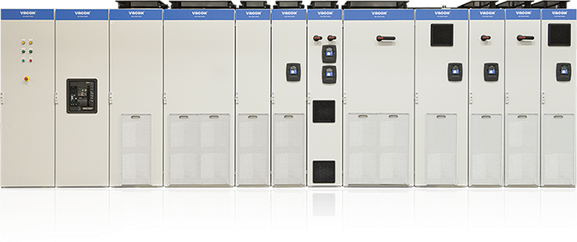

VACON® NXP System Drive
Standardized yet configurable common DC bus system for sectional drives applications
Current ratings (main busbars)
3 x 380-500 V ……………………. 630-5000 A
3 x 525-690 V ……………………. 630-5000 A
Protection ratings
IP21
IP31/Type 1
Description
| Feature | Benefit |
|---|---|
| Strong package | Complete offering |
| Based on Vacon NXP Common DC bus product range | Complete product portfolio for enclosed Common DC systems |
| Pre-desgined common DC bus enclosure concept | Guaranteed performance and eay configuration |
| Delivery specific configuration of pre-desgined sections | Minimized amount of engineering need – short sales and engineering lead time |
| Reliable | Maximum uptime |
| Service concept with roll-out of power modules | Easy and quick service of drive system |
| Pre-tested sections and certified IEC and UL508c | Reliable and safe designs |
| Pre-tested performance | Known and reliable performance data |
| Easy and Safe | Saves installation cost |
| Vacon Layout for graphical system configuration | Easy and visual project configuration |
| High power busbar sections in separate compartments | Increased safety |
| Feature | Benefit |
| Vacon NXP control flexibility Best control solutions | |
| High performance control and flexibility in one control unit | Same interfaces and functionality in all Vacon NXP based products |
| Removable keypad with parameter backup and copy function | Latest parameters always in keypad, copy for fast cloning of drives |
| All I/O modular – 5 interface card slots | I/O and fieldbus interface can be configured for any need |
| Built-in PLC functionality | Enables custom made software functionality |
| Open and Closed Loop motor control | Maximum motor control performance |
| Fast drive-to-drive communicaton and Drive-synch functionality | For load sharing and paralelling of power units |
| Separate automation control bus and separate monitor bus for PC tool | Using of PC software for drive configuration and monitoring |
| Safe Torque Off (STO), Safe Stop 1 (SS1) advanced safety option | Safe and compliant machine operation |
| ATEX certified thermistor input | No need for external ATEX approved thermistor relay |
