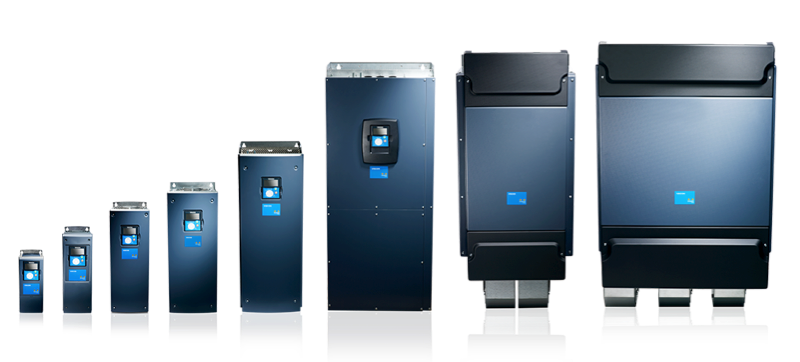

VACON® NXP Air Cooled
Wide power range of air-cooled drives for industrial drive applications.
Power range
3 x 208-240 V …………………… 0.55-90 kW
3 x 380-500 V …………………. 1.5-1200 kW
with DriveSynch 1.5-4000 kW
3 x 525-690 V …………………. 2.0-2000 kW
with DriveSynch 2.0-4500 kW
Protection ratings
IP00
IP21/Type 1*
IP54/Type 12*
*dependent upon enclosure size
Description
| Feature | Benefit |
|---|---|
| Reliable | Maximum uptime |
| Available in IP00, IP21, IP54 enclosures | Enclosures for all environments both as wall mounted and cabinets |
| Built in AC-chokes | Reduced harmonics and increased disturbance immunity |
| All metal power structures (wall-mounted and standalone drives) | Maximum mechanical robustness |
| Drive protection and monitoring | Early warning alarms ensures maximum uptime |
| Segregated cooling air flow | Increased reliability in demanding conditions |
| Easy and Safe | Saves installation cost |
| Space saving design | Minimized space need |
| Same size of IP21 and IP54 drives | System planning easy |
| Through panel / Flange mouting | Effective cooling of enclosure |
| EMC filters for C1/C2 class built-in (wall mounted sizes) | No extra components need for connection to public networks |
| Marine Type Approvals available | Perfect choice for marine applications |
| High Power Modules Easy to integrate | |
| IP00 modules for mounting in customers enclosure | Ideal for system integrators and panel builders |
| Full power LV range covered | Complete offering enable full scope supply of drives products |
| AC Chokes external | Reduces weight of power unit |
| 12-pulse solutions available | The complete high power range is available also in 12-pulse version for reduced harmonics |
| Separate mounting possibility for control unit | Control unit can be mounted in a different cabinet section for maximum safety |
| Cabinet assembly kits available | Easy and tested cabinet solutions |
| Feature | Benefit |
| Vacon NXP control flexibility Best control solutions | |
| High performance control and flexibility in one control unit | Same interfaces and functionality in all Vacon NXP based products |
| Removable keypad with parameter backup and copy function | Latest parameters always in keypad, copy for fast cloning of drives |
| All I/O modular – 5 interface card slots | I/O and fieldbus interface can be configured for any need |
| Built-in PLC functionality | Enables custom made software functionality |
| Open and Closed Loop motor control | Maximum motor control performance |
| Fast drive-to-drive communicaton and Drive-synch functionality | For load sharing and paralelling of power units |
| Separate automation control bus and separate monitor bus for PC tool | Using of PC software for drive configuration and monitoring |
| Safe Torque Off (STO), Safe Stop 1 (SS1) Advanced safety option | Safe and compliant machine operation |
| ATEX certified thermistor input | No need for external ATEX approved thermistor relay |
